CIGAR LABELS (CIGAR BANDS) — PRODUCT SPECIFICATION SHEET
1. PRODUCT OVERVIEW

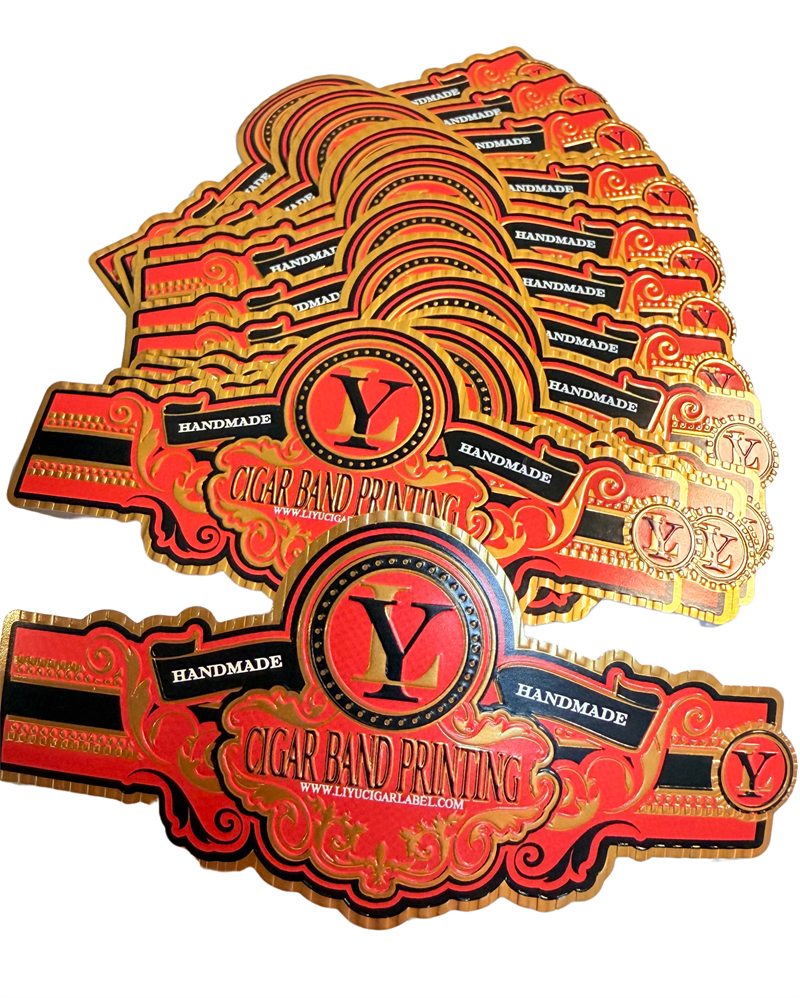

Cigar labels, commonly referred to as cigar bands (also known in Spanish as anilla or vitola), are decorative paper or foil loops wrapped around the circumference of a cigar to display the brand name, logo, product series, and other identifying information. Cigar bands serve three primary functions: (1) brand identification and product differentiation; (2) authenticity verification for premium and limited‑edition cigars; and (3) aesthetic enhancement that elevates the overall smoking experience and gift presentation.
Historically, the cigar band is credited to Gustave Bock, a European immigrant to Cuba who introduced the concept in the 1830s. Within two decades, the practice became widespread across the cigar industry. Today, cigar bands are an integral component of premium cigar packaging, often featuring embossed logos, metallic foils, intricate typography, and special‑edition markings that signal a cigar‘s origin, age, or limited availability.
1.1 Applications
Premium cigar branding – Displaying the manufacturer’s name, brand emblem, and cigar line.
Limited‑edition releases – Second bands indicating vintage, special blend, or exclusive status.
Event / promotional cigars – Custom bands for weddings, corporate gifts, anniversaries, trade‑show giveaways, and golf outings.
Authenticity and anti‑counterfeiting – Holographic elements, microdots, unique barcodes, and tamper‑evident designs.
DIY / personalization projects – Printable blank sheets for small‑scale users (weddings, parties, baby announcements).
2. KEY FEATURES
3. TECHNICAL SPECIFICATIONS
3.1 Dimensional Specifications (Standard Models)
The following dimensions represent common standard cigar label configurations, each designed to fit cigars ranging from 42 to 60 ring gauge. Custom dimensions are available upon request.
| Parameter | OL380 (Fancy Style) | OL383 (Traditional Style) | OL3636SW (Simple Style) | Standard Blank Band | Billboard Style (OL382) |
|---|---|---|---|---|---|
| Label Height | 1.2049 in (30.6 mm) | 1.1401 in (28.96 mm) | 0.75 in (19.05 mm) | 0.75 in (19.05 mm) | 1.0096 in (25.64 mm) |
| Label Length | 3.25 in (82.55 mm) | 3.25 in (82.55 mm) | 3.25 in (82.55 mm) | 4.0 in (101.6 mm) | 3.25 in (82.55 mm) |
| Labels per Sheet | 16 | 16 | 20 | 400 (bulk pack) | 16 |
| Sheet Size | 8.5 in × 11 in | 8.5 in × 11 in | 8.5 in × 11 in | N/A (rolled or stacked) | 8.5 in × 11 in |
| Fit Range (Ring Gauge) | 42–60 | 42–60 | 42–60 | Small to large | 42–60 |
Notes:
All labels are designed to overlap when wrapped. The adhesive is applied to one end only; the overlapping label surface is affixed to the opposite side of the label, never to the cigar itself.
Dimensions are nominal and subject to ±0.5 mm tolerance for custom production runs.
3.2 Ring Gauge Reference (for Size Matching)
| Ring Gauge | Diameter (inches) | Diameter (mm) | Typical Cigar Size Examples |
|---|---|---|---|
| 38 | 0.5938″ | 15.08 mm | Lancero |
| 42 | 0.6563″ | 16.67 mm | Corona / Petit Corona |
| 50 | 0.7813″ | 19.84 mm | Robusto / Toro |
| 52–54 | 0.8125–0.8438″ | 20.64–21.43 mm | Robusto Extra / Torpedo |
| 60 | 0.9375″ | 23.81 mm | Gordo / 60 Ring Gauge |
Ring gauge is measured in 64ths of an inch; a 50‑ring cigar has a diameter of 50/64″ (approximately 0.78″). Cigar length is measured in inches from the head (cut end) to the foot (lighting end).
3.3 Material Options
3.4 Adhesive Specifications
| Parameter | Standard Model | Advanced Model | Pro Model |
|---|---|---|---|
| Adhesion Strength | 5 N/cm² | 7.5 N/cm² | 10 N/cm² |
| Adhesive Type | Patterned (non‑cigar‑contact) | Enhanced patterned adhesive | Industrial‑grade patterned adhesive |
| Backing | Cracked liner for easy peel | Cracked liner | Full liner with optional split lines |
| FDA Compliance | FDA‑approved adhesive (for indirect contact) | FDA‑approved | FDA‑approved |
Critical Note: The adhesive is applied to one end of the label only and is engineered to never make direct contact with the cigar wrapper — preserving the wrapper‘s flavor and preventing damage to the delicate tobacco leaf.
3.5 Printing & Finishing Capabilities
3.6 Color Specifications
| Standard Color Options | Pantone Matching Available? |
|---|---|
| CMYK full‑color process | ✓ Yes – acceptable for brand color matching |
| Spot colors (PANTONE references) | ✓ Yes |
| Metallic foils (gold, silver, rose gold) | ✓ Yes |
| Custom brand‑specific colors | ✓ Yes (provide Pantone codes or physical sample) |
For regulatory compliance, some jurisdictions require cigar bands to meet specific color standards (e.g., Pantone 448C for plain packaging regimes), though this applies to the band background rather than brand markings.
4. QUALITY & COMPLIANCE CERTIFICATIONS
All standard materials and manufacturing processes comply with the following international certifications (where applicable):
Additional compliance may include:
EU Tobacco Products Directive (TPD) labeling requirements
Canadian Tobacco Products Appearance, Packaging and Labelling Regulations
5. CUSTOMIZATION OPTIONS
5.1 Customizable Parameters
5.2 Sample Ordering & Lead Times
5.3 Minimum Order Quantities (MOQ)
Note: For custom embossing, foil stamping, or specialty finishing, MOQ may be higher. Contact supplier for exact requirements.
6. APPLICATION INSTRUCTIONS
6.1 Application Steps (for non‑DIY professional use)
Clean hands — Ensure hands are dry and free of oils before handling.
Peel label — Remove the backing from the adhesive end only.
Position — Wrap the non‑adhesive portion around the cigar near the head (usually within 1/2 inch of the cap).
Secure — Bring the adhesive tab around and press onto the opposite side of the label (overlap area). Adhesive must not touch the cigar wrapper.
Press — Apply gentle pressure to secure the bond.
6.2 Notes for DIY / Printable Labels (White Matte Material)
Compatible with both laser and inkjet printers.
For Silver Foil material: Laser printers only — inkjet ink will not adhere properly to metallic surfaces.
Before designing, identify which side of the label will be covered by overlap; keep critical text and design elements outside that overlap zone.
For sheet‑fed labels, ensure printer settings match the label dimensions (8.5″ × 11″ sheet).
7. PACKAGING & SHIPPING INFORMATION
7.1 Packaging Formats
7.2 Shipping Specifications
8. INDUSTRY TERMS & GLOSSARY
9. FREQUENTLY ASKED QUESTIONS (FAQ)
Q1: Can I print on these labels using a home printer?
Yes. White Matte labels are compatible with both inkjet and laser printers. Silver Foil labels require a laser printer only.
Q2: Will the adhesive damage the cigar wrapper?
No. The patterned adhesive is engineered to contact only the label itself (via overlapping overlap), never directly touching the cigar wrapper. This preserves the wrapper‘s flavor and structural integrity.
Q3: Can I order custom shapes and sizes?
Yes. Custom band sizes and die‑cut shapes can be developed based on cigar ring gauge and branding requirements.
Q4: What file formats do you accept for custom artwork?
AI (Adobe Illustrator) and PDF with outlined fonts are preferred. High‑resolution JPG and PNG files are accepted for simpler designs.
Q5: Are these labels waterproof?
PVC and certain coated paper materials are waterproof / water‑resistant, making them suitable for use in high‑humidity environments such as humidors. Standard paper labels are not waterproof.
Q6: Do you support embossing and foil stamping?
Yes. Embossing, gold/silver foil stamping, and 3D UV raised printing are all available finishing options.
Q7: What certifications are available?
GRS, FSC, RoHS, REACH, UL, CP65, and EPR (Germany/France) are available on certified materials. FDA‑approved adhesives are standard.
Q8: What is the minimum order quantity (MOQ)?
For OEM custom production: typically 500–5,000 pieces depending on material and finishing. For blank or pre‑designed sheets: no minimum (sold by the sheet) via retail partners.
Q9: How do I ensure the label fits my cigar size?
Measure the cigar‘s ring gauge (diameter in 64ths of an inch) and length. Standard labels are designed to fit 42–60 ring gauge cigars. For cigars outside this range, custom dimensions can be produced.
Q10: What is the typical lead time for custom orders?
Sample lead time: 7–10 working days. Mass production: 2–3 weeks for standard orders, plus shipping time.
